Raytheon Blues – “Big Blues”











   Photo Courtesy Terry Hosking





Photo Essay Commentary

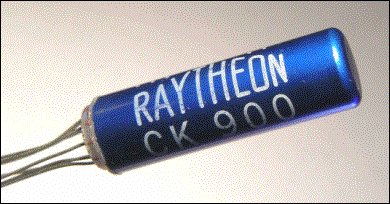

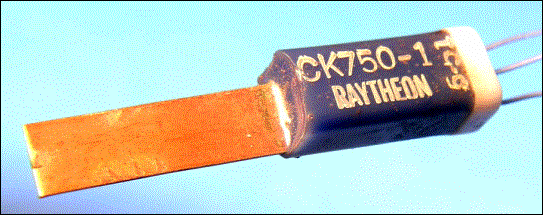

These photos illustrate several of the most unusual of the Raytheon Blues.  The top unit (CK750-1) is dated from late 1955 and is likely the first style of Raytheon power transistor.  The case is blue plastic with a brass strip inserted for heat dissipation.  The CK753 is a standard TO-3 case style power transistor, likely made in limited quantities.  The CK900, dated 1957, is most unusual. It is 3/8”  in diameter and 1  ¼” in length, and houses four separate germanium transistors.  Multiple leads allow connection to all the transistors.  The CK900 (and the smaller CK901) represent a little known and historic avenue of germanium transistor technology.
